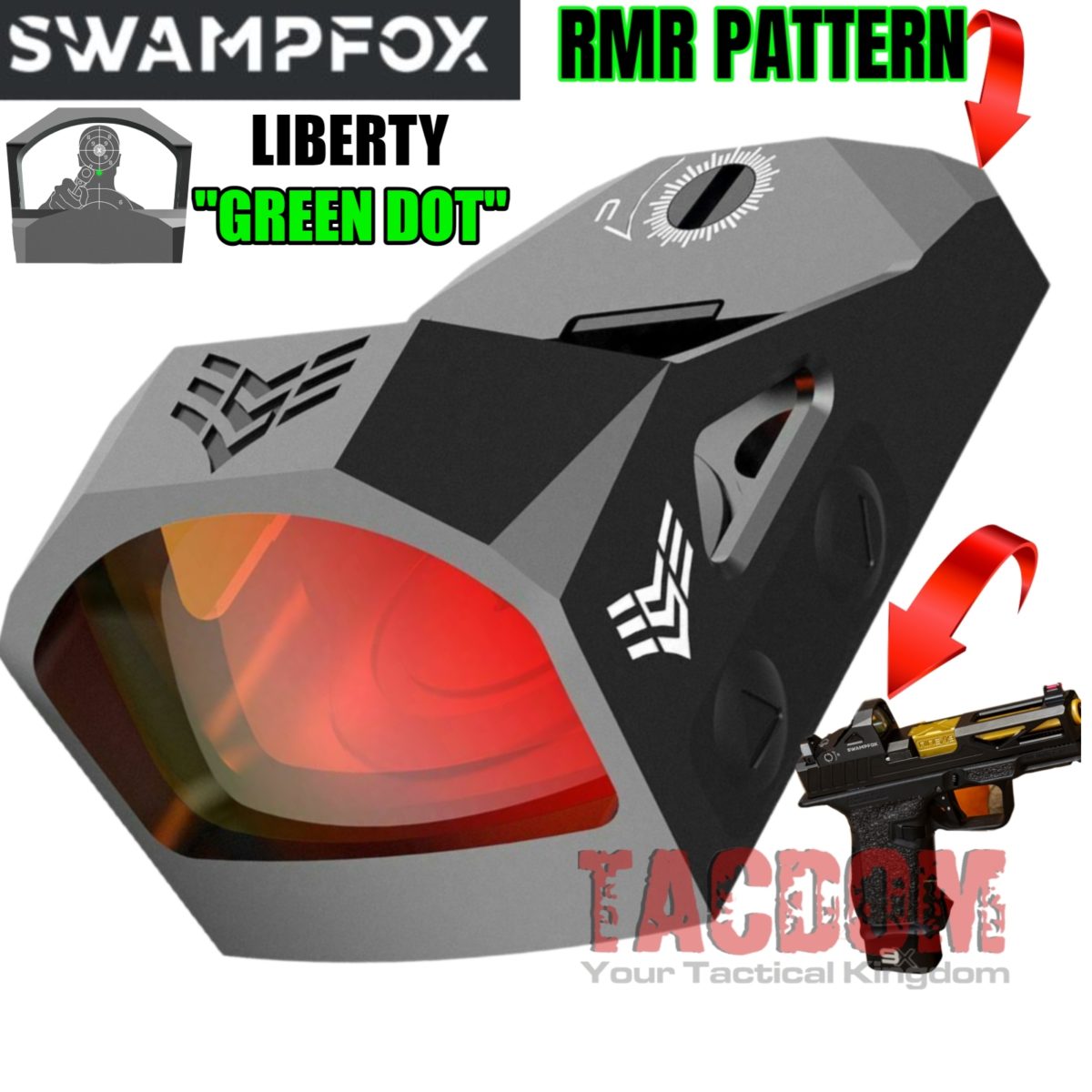

SWAMP FOX
LIBERTY
Micro Reflex Sight
1×22
3 MOA GREEN DOT
For RMR CUT PATTERN SLIDES
(Does not fit RMSc-cut slides.)
The 22mm wide window makes the Liberty about the same width as a double-stack Glock 9mm slide. As a result, the Liberty is a bit easier to conceal than its bigger brother, the Justice.
The Liberty is narrower near the base than the previous generation Kingslayer, with flush fitting brightness buttons on the left and a top-loading CR1632 battery which replacing the Kingslayer’s side-tray system. The Liberty’s emitter section is also lower profile, allowing iron sights of .365” or higher to co-witness properly.
| MOA Adjustment | Dial |
| Dot Size | 3 MOA |
| Magnification | 1x |
| Lens Diameter | Justice: 22mm |
| Illumination Positions | 10 |
| Brightness Adjustments | Up/Down Digital Press |
| Shockproof G Forces | 1500Gs |
| Waterproof | 1 Meter/ IPX7 |
| Battery Type | CR 1632 |
| Max Battery Life | Approx 1 Year Real World (Shake ‘N Wake) |
| Dimensions | Justice: 1.78”(length) * 1.09” (width) * 1.00”(height) |
| Weight | 1oz without battery |
| Lens | Multi-Coated Ruby Red |
| Specialty Coatings | Anti-fog, hydrophobic, anti-scratch |
| Parallax | Parallax free @100 yards |
| Eye Relief | Unlimited |
| Mount Type | RMR |
| Chassis | 7075-T6 aircraft grade aluminum |
| Windage/Elevation Movement Range (MOA) | 45 MOA/ Total 90 MOA Range |
WHAT IS INCLUDED IN THE BOX:
| Optic with cover |
| Swampfox tool |
| Lens Cloth |
| Battery |
| User Manual |
| Three screw sets
TORX M3.5×0.6L T10 TORX #4-40×0.250″L T10 TORX #6-32×0.315″L T10 |
WARRANTY:
If your Swampfox Optic fails prior to 50,000 rounds fired, Swampfox will repair or replace it for free.
